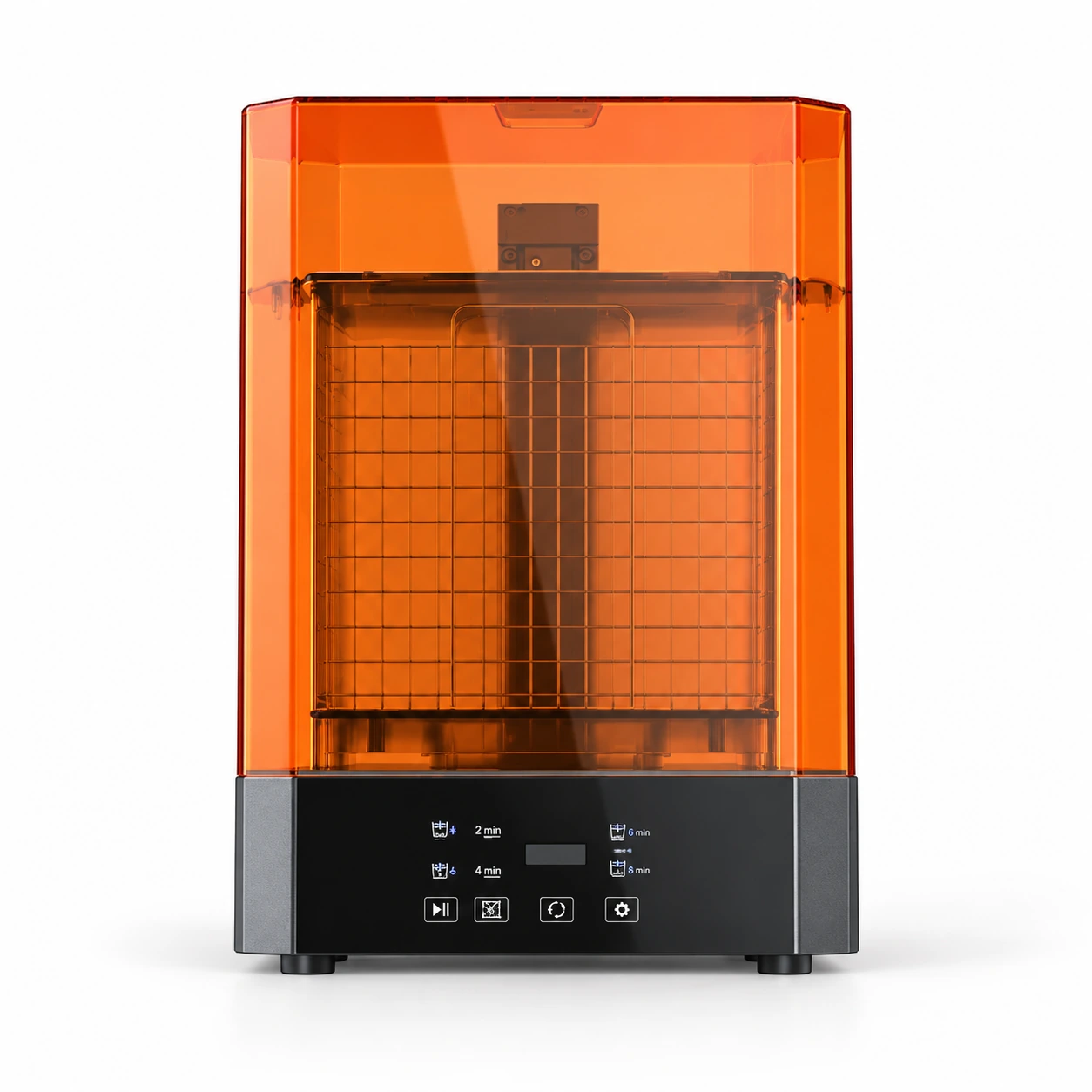

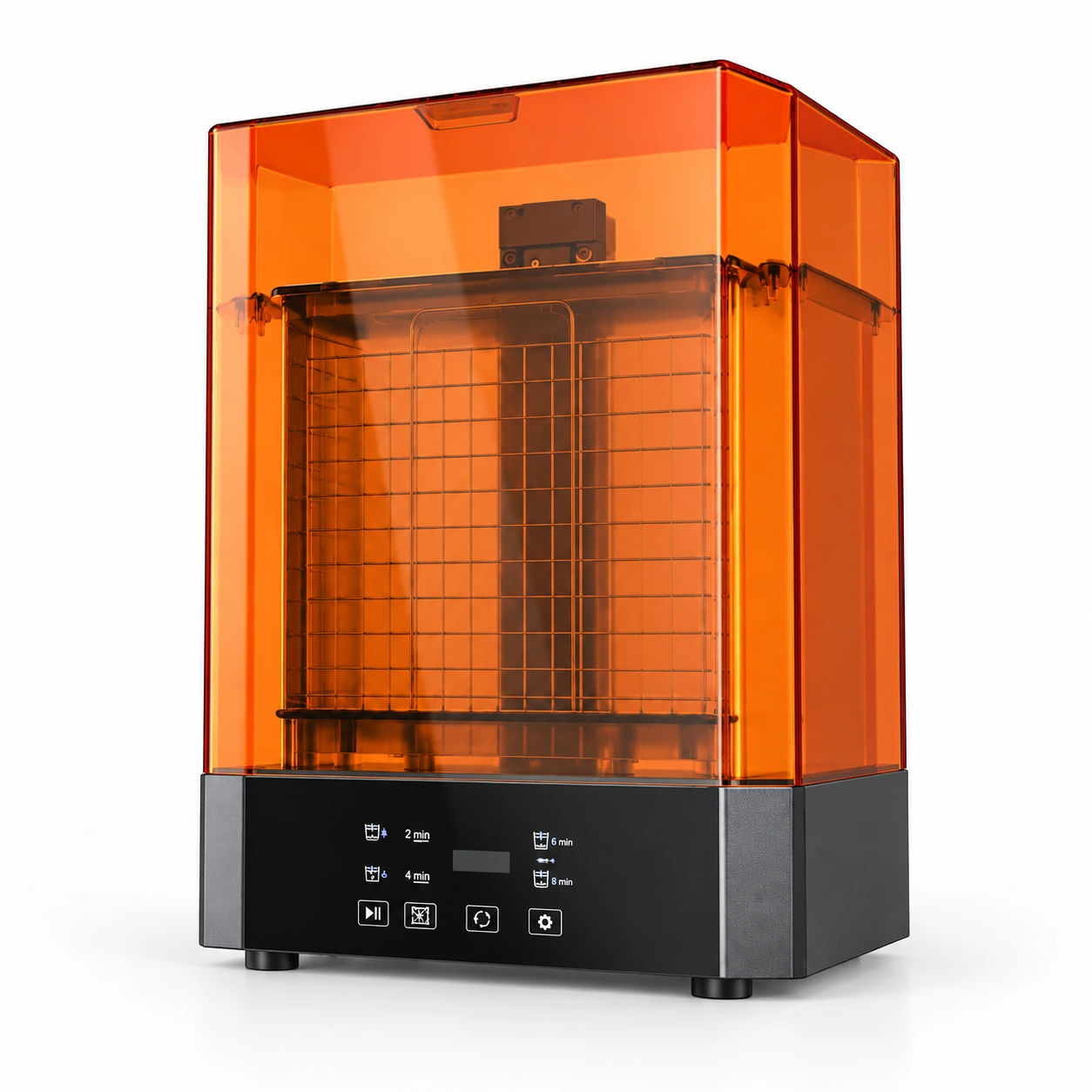

All-In-One Washing and Curing Station – UW-02

PRODUCT DESCRIPTION:

The Resin Washing and Curing Machine UW-02 is an all-in-one post-processing solution designed to make resin 3D printing cleaner, easier, and more convenient. Combining automatic washing and UV curing in a single workstation, the UW-02 helps users finish resin printed models with greater control and consistency.

Designed for models produced using SLA, DLP, and compatible resin 3D printing technologies, this machine features a spacious 10.1-inch processing design, 360° rotating curing platform, and 385nm and 405nm dual-wavelength UV LEDs. From detailed miniatures to larger prototypes, the UW-02 supports the essential cleaning and curing stages of resin 3D printing.

Why Choose the UW-02 Resin Washing and Curing Machine?

A properly finished resin 3D print requires more than simply removing it from the printer. Uncured resin must be washed from the model’s surface, followed by suitable UV curing to achieve the intended material properties.

The UW-02 brings these two processes together, reducing the need for separate post-processing equipment. Its fully enclosed construction, automatic cleaning system, and controlled curing functions make it a practical addition to resin printing workspaces.

1. All-in-One Washing and Curing System

The UW-02 combines washing and curing functions in one convenient machine. Its automatic cleaning mode helps remove residual liquid resin from the surfaces of freshly printed objects.

After washing and completely drying the model, users can switch to UV curing mode to complete the post-processing stage.

This integrated approach helps simplify resin printing workflows while keeping the workspace more organized.

2. Spacious 10.1-Inch Washing and Curing Design

The machine offers a large processing area suitable for resin models of different shapes and sizes.

With a washing capacity measuring 240 × 160 × 200 mm, the UW-02 can accommodate various printed components, including larger prototypes and multiple smaller models when correctly arranged.

Its spacious design is especially useful for designers, hobbyists, and professionals who regularly work with detailed or complex resin prints.

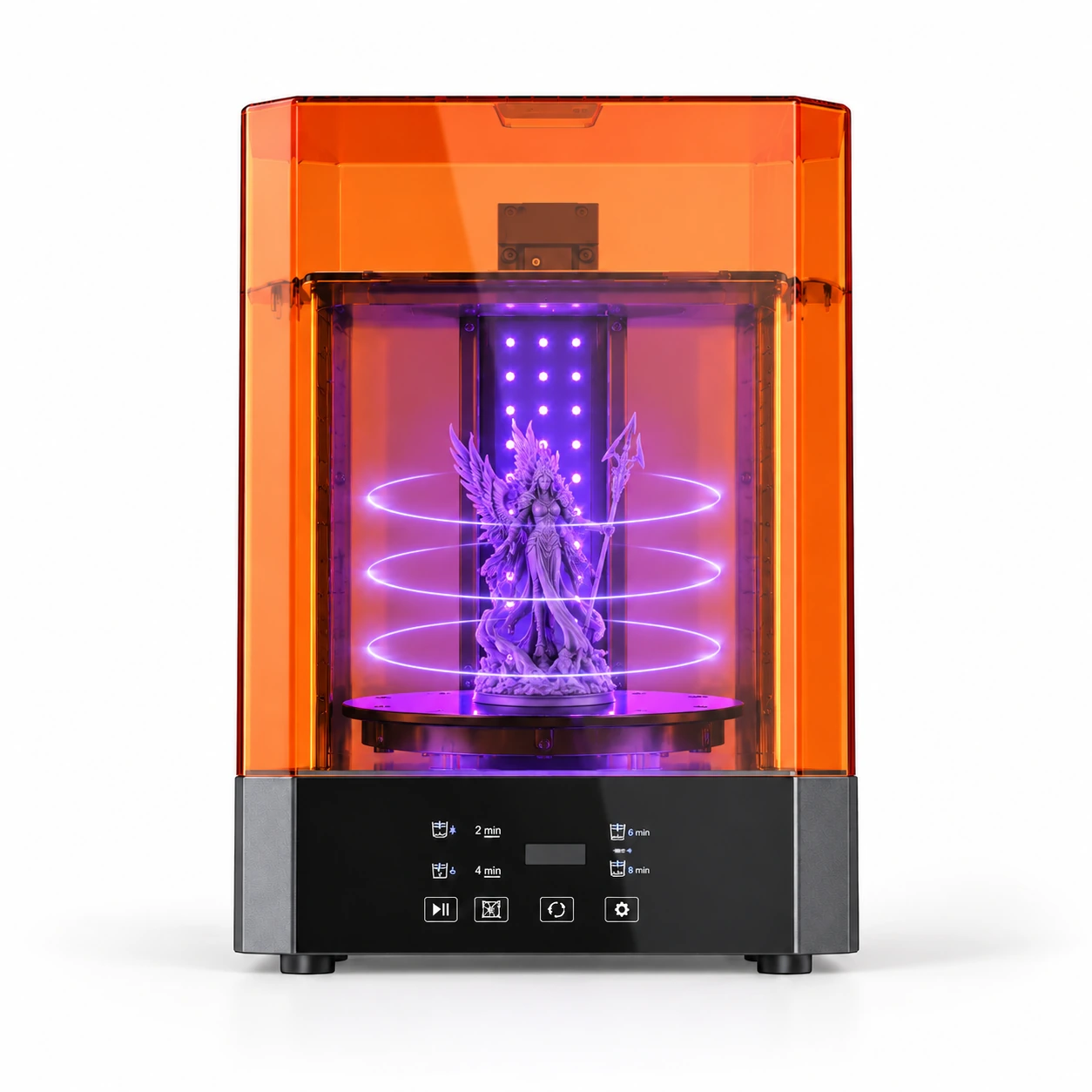

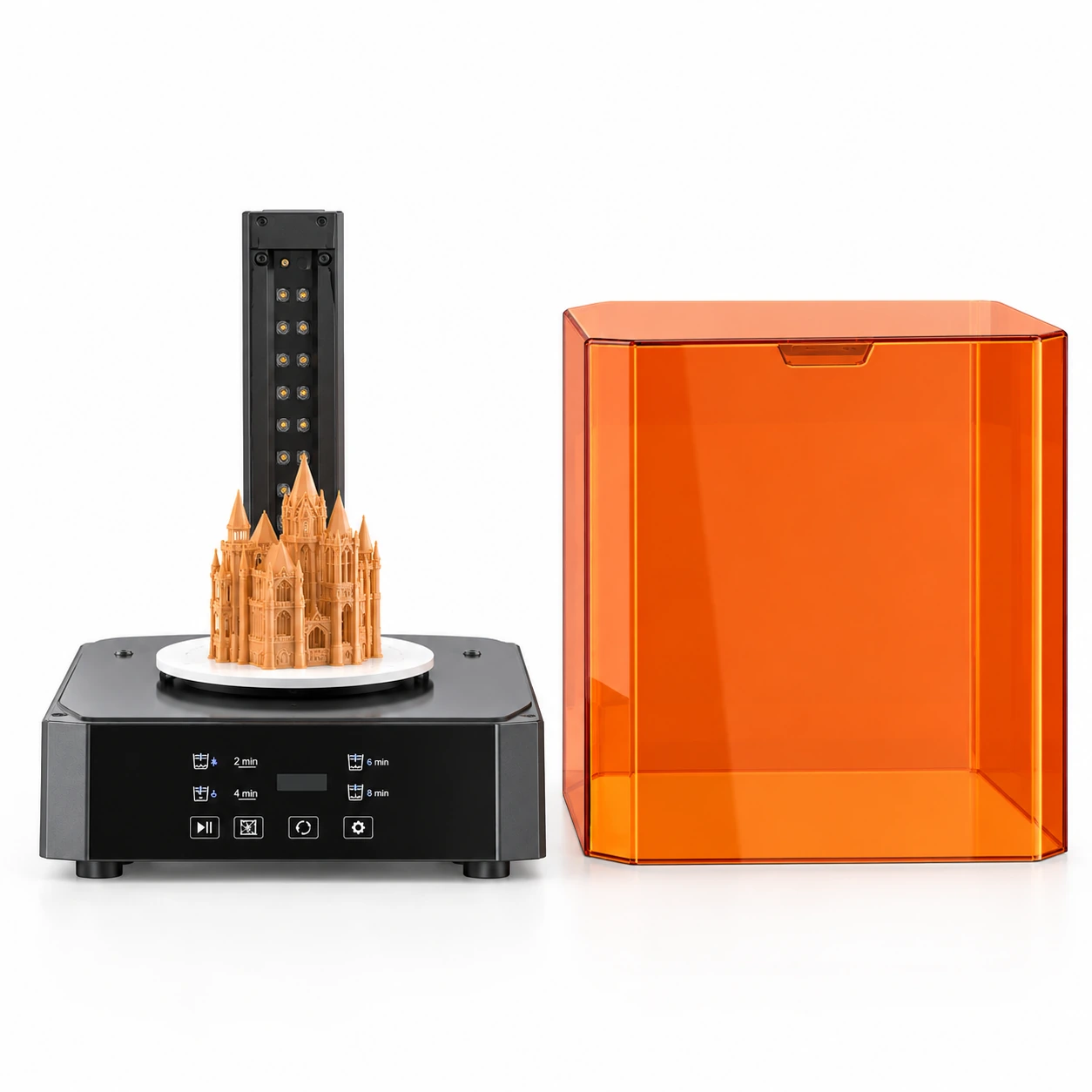

3. 360° Rotating UV Curing Platform

The Resin Washing and Curing Machine uses a 360° rotating curing platform combined with reflective surfaces to distribute UV illumination around printed models.

As the platform rotates, different sides of the object receive light exposure, helping provide more consistent curing than a stationary light source.

This feature is particularly useful for miniatures, figurines, decorative components, and models with intricate surface details.

Curing performance may vary depending on model geometry, resin formulation, and exposure settings.

4. 385nm and 405nm Dual-Wavelength UV Technology

The UW-02 features advanced dual-band UV LED beads operating at 385nm and 405nm.

These wavelengths support curing of compatible photosensitive resin materials. The upgraded LED strip and lens arrangement are designed to deliver more uniform and concentrated UV illumination throughout the curing area.

The dual-wavelength system provides additional flexibility when processing suitable resin prints. Users should always follow the material manufacturer’s recommended curing wavelength and exposure duration.

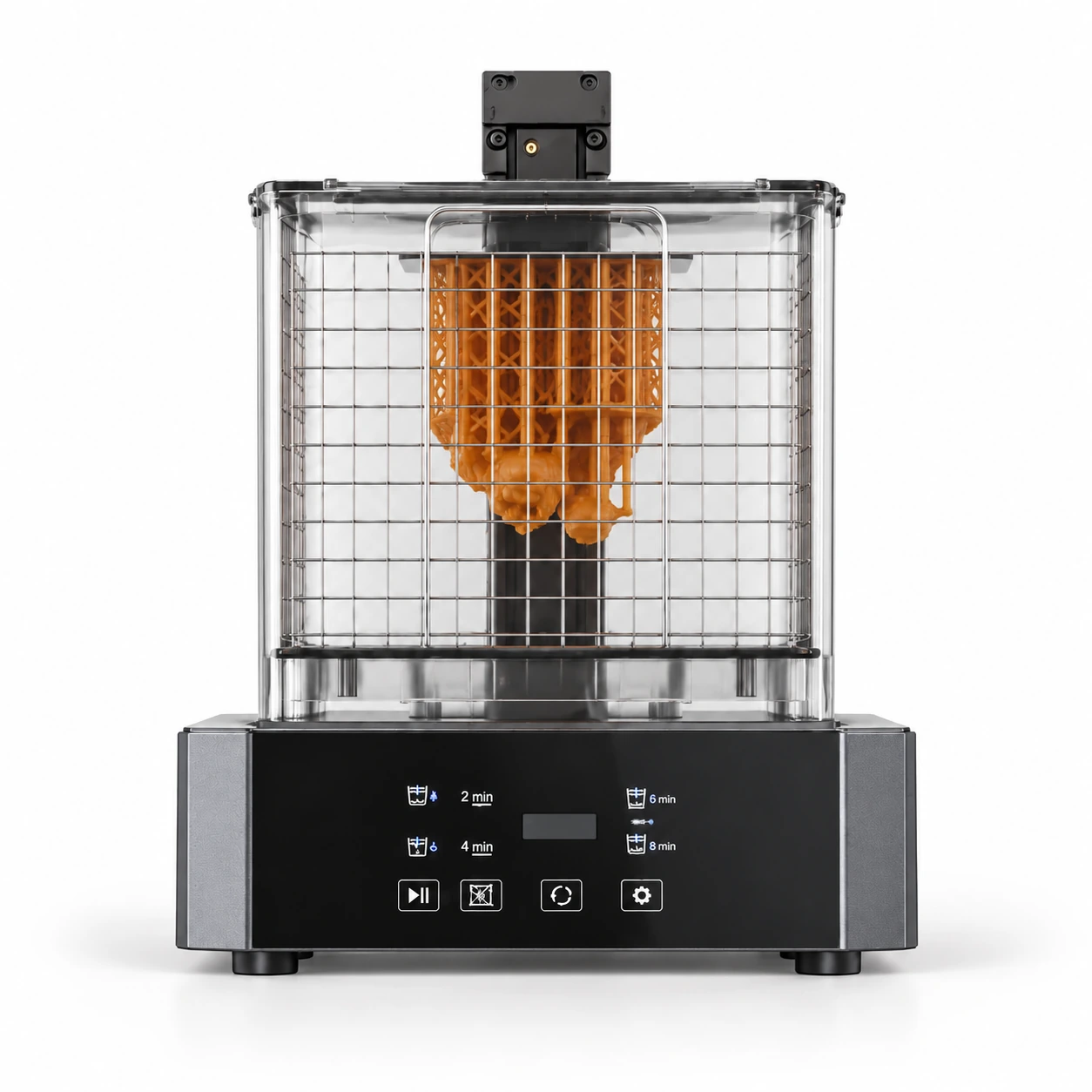

5. Automatic Resin Cleaning for Detailed Models

Cleaning is one of the most important stages of resin 3D printing. Residual liquid resin can affect the appearance and quality of a finished model when it is not removed properly.

The UW-02 provides an automatic washing function that helps clean printed objects using an appropriate washing liquid.

This process is particularly helpful for models with small details, textured surfaces, and intricate shapes. Hollow models and narrow internal channels may require additional rinsing to remove trapped resin.

The washing solution must be compatible with both the printed resin and the machine’s cleaning system.

6. Controlled Speed and Time Settings

Different resin materials and model dimensions can require different washing and curing conditions.

The UW-02 includes processing controls that allow users to adjust operating time and select suitable speed settings.

These controls make it easier to manage post-processing according to model requirements without relying entirely on manual cleaning and curing methods.

Following the resin manufacturer’s recommendations can help prevent under-curing, excessive exposure, and unwanted surface changes.

Applications of the Resin Washing and Curing Machine

The UW-02 is suitable for various resin 3D printing applications.

Miniatures and Figurines: Clean and cure character models, tabletop gaming miniatures, and collectible figurines with detailed surfaces.

Product Prototypes: Process resin prototypes used for design evaluation, product development, and functional testing where the selected resin is suitable.

Architectural Models: Finish miniature buildings, decorative architectural components, and detailed presentation models.

Jewelry-Style Prototypes: Wash and cure intricate jewelry patterns, ornamental designs, and customized resin models using appropriate materials.

Creative and Educational Projects: Support resin printing activities involving sculptures, demonstrations, and personalized 3D objects.

Mechanical Components: Process compatible engineering resin parts that require post-print washing and UV curing before further evaluation or use.

Technical Specifications of UW-02 Washing and Curing Station

How to Use the UW-02 Resin Washing and Curing Machine

Step 1 – Prepare the Resin Model

Carefully remove the printed model from the resin 3D printer. Allow excess uncured resin to drain, following appropriate handling precautions.

Step 2 – Start the Washing Process

Place the printed model inside the washing container. Add a suitable cleaning solution and select the recommended washing settings.

Step 3 – Dry the Printed Model

After washing, remove the model and allow the cleaning liquid to drain and evaporate completely. Check hollow spaces and internal channels for trapped liquid.

Step 4 – Begin UV Curing

Position the dry model on the rotating curing platform. Select the appropriate curing duration based on the resin manufacturer’s recommendations.

Step 5 – Inspect the Finished Model

After curing, inspect the printed object for any remaining residue or areas that may need additional processing.

For additional information about the general washing process, read this resin 3D print washing guide by Formlabs.

Benefits of Using a Dedicated Resin Post-Processing Station

A dedicated washing and curing workstation helps users maintain a more consistent resin printing process.

The UW-02 reduces the need to manage separate cleaning and curing devices, making it easier to organize the workspace and follow a repeatable finishing routine.

Its large processing area, dual-wavelength UV illumination, and rotating curing platform make it useful for a wide variety of resin printed objects.

Proper washing and curing can help improve surface cleanliness and achieve the mechanical properties intended by the resin manufacturer.

Users should handle uncured resin carefully, wear suitable protective equipment, ensure adequate ventilation, and follow the safety instructions for all cleaning liquids.

Complete Your Resin 3D Printing Setup with NFIL3D

The Resin Washing and Curing Machine UW-02 offers a practical solution for users who want a convenient way to wash and cure resin 3D printed models.

With its automatic cleaning system, 360° UV curing platform, spacious processing area, and 385nm and 405nm LED technology, it helps simplify the post-processing stage of resin printing.

Whether you create decorative models, detailed miniatures, architectural prototypes, or functional resin components, the UW-02 supports an organized and efficient finishing workflow.
